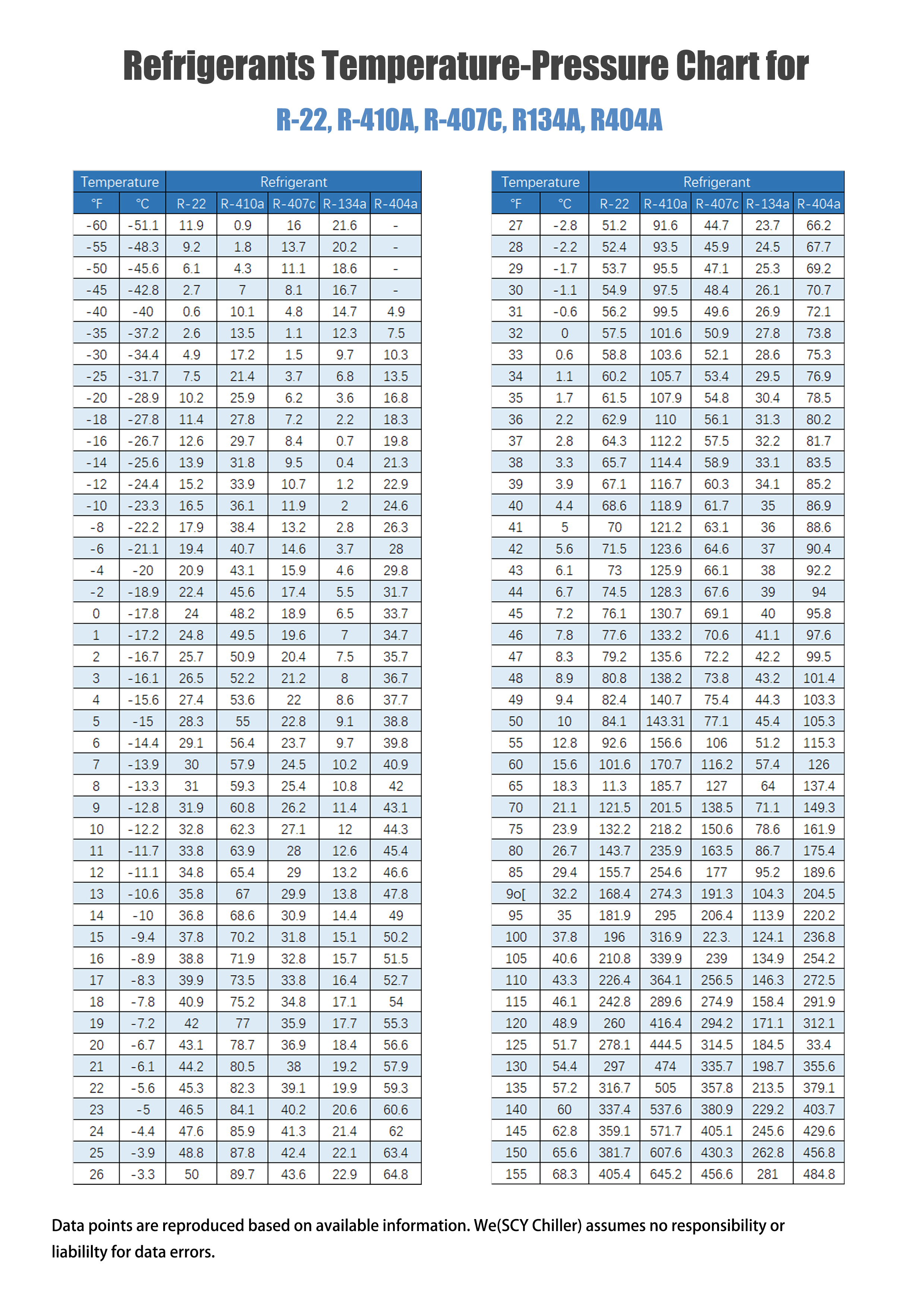

Refrigerants Temperature-Pressure Chart for R-22, R-410A, R-407C, R134A, R404A

Temperature

Refrigerant

°F °C R-22 R-410a R-407c R-134a R-404a
-60 -51.1 11.9 0.9 16 21.6
-55 -48.3 9.2 1.8 13.7 20.2
-50 -45.6 6.1 4.3 11.1 18.6
-45 -42.8 2.7 7 8.1 16.7
-40 -40 0.6 10.1 4.8 14.7 4.9
-35 -37.2 2.6 13.5 1.1 12.3 7.5
-30 -34.4 4.9 17.2 1.5 9.7 10.3
-25 -31.7 7.5 21.4 3.7 6.8 13.5
-20 -28.9 10.2 25.9 6.2 3.6 16.8
-18 -27.8 11.4 27.8 7.2 2.2 18.3
-16 -26.7 12.6 29.7 8.4 0.7 19.8
-14 -25.6 13.9 31.8 9.5 0.4 21.3
-12 -24.4 15.2 33.9 10.7 1.2 22.9
-10 -23.3 16.5 36.1 11.9 2 24.6
-8 -22.2 17.9 38.4 13.2 2.8 26.3
-6 -21.1 19.4 40.7 14.6 3.7 28
-4 -20 20.9 43.1 15.9 4.6 29.8
-2 -18.9 22.4 45.6 17.4 5.5 31.7
0 -17.8 24 48.2 18.9 6.5 33.7
1 -17.2 24.8 49.5 19.6 7 34.7
2 -16.7 25.7 50.9 20.4 7.5 35.7
3 -16.1 26.5 52.2 21.2 8 36.7
4 -15.6 27.4 53.6 22 8.6 37.7
5 -15 28.3 55 22.8 9.1 38.8
6 -14.4 29.1 56.4 23.7 9.7 39.8
7 -13.9 30 57.9 24.5 10.2 40.9
8 -13.3 31 59.3 25.4 10.8 42
9 -12.8 31.9 60.8 26.2 11.4 43.1
10 -12.2 32.8 62.3 27.1 12 44.3
11 -11.7 33.8 63.9 28 12.6 45.4
12 -11.1 34.8 65.4 29 13.2 46.6
13 -10.6 35.8 67 29.9 13.8 47.8
14 -10 36.8 68.6 30.9 14.4 49
15 -9.4 37.8 70.2 31.8 15.1 50.2
16 -8.9 38.8 71.9 32.8 15.7 51.5
17 -8.3 39.9 73.5 33.8 16.4 52.7
18 -7.8 40.9 75.2 34.8 17.1 54
19 -7.2 42 77 35.9 17.7 55.3
20 -6.7 43.1 78.7 36.9 18.4 56.6
21 -6.1 44.2 80.5 38 19.2 57.9
22 -5.6 45.3 82.3 39.1 19.9 59.3
23 -5 46.5 84.1 40.2 20.6 60.6
24 -4.4 47.6 85.9 41.3 21.4 62
25 -3.9 48.8 87.8 42.4 22.1 63.4
26 -3.3 50 89.7 43.6 22.9 64.8
27 -2.8 51.2 91.6 44.7 23.7 66.2
28 -2.2 52.4 93.5 45.9 24.5 67.7
29 -1.7 53.7 95.5 47.1 25.3 69.2
30 -1.1 54.9 97.5 48.4 26.1 70.7
31 -0.6 56.2 99.5 49.6 26.9 72.1
32 0 57.5 101.6 50.9 27.8 73.8
33 0.6 58.8 103.6 52.1 28.6 75.3
34 1.1 60.2 105.7 53.4 29.5 76.9
35 1.7 61.5 107.9 54.8 30.4 78.5
36 2.2 62.9 110 56.1 31.3 80.2
37 2.8 64.3 112.2 57.5 32.2 81.7
38 3.3 65.7 114.4 58.9 33.1 83.5
39 3.9 67.1 116.7 60.3 34.1 85.2
40 4.4 68.6 118.9 61.7 35 86.9
41 5 70 121.2 63.1 36 88.6
42 5.6 71.5 123.6 64.6 37 90.4
43 6.1 73 125.9 66.1 38 92.2
44 6.7 74.5 128.3 67.6 39 94
45 7.2 76.1 130.7 69.1 40 95.8
46 7.8 77.6 133.2 70.6 41.1 97.6
47 8.3 79.2 135.6 72.2 42.2 99.5
48 8.9 80.8 138.2 73.8 43.2 101.4
49 9.4 82.4 140.7 75.4 44.3 103.3
50 10 84.1 143.31 77.1 45.4 105.3
55 12.8 92.6 156.6 106 51.2 115.3
60 15.6 101.6 170.7 116.2 57.4 126
65 18.3 11.3 185.7 127 64 137.4
70 21.1 121.5 201.5 138.5 71.1 149.3
75 23.9 132.2 218.2 150.6 78.6 161.9
80 26.7 143.7 235.9 163.5 86.7 175.4
85 29.4 155.7 254.6 177 95.2 189.6
9o[ 32.2 168.4 274.3 191.3 104.3 204.5
95 35 181.9 295 206.4 113.9 220.2
100 37.8 196 316.9 22.3. 124.1 236.8
105 40.6 210.8 339.9 239 134.9 254.2
110 43.3 226.4 364.1 256.5 146.3 272.5
115 46.1 242.8 289.6 274.9 158.4 291.9
120 48.9 260 416.4 294.2 171.1 312.1
125 51.7 278.1 444.5 314.5 184.5 33.4
130 54.4 297 474 335.7 198.7 355.6
135 57.2 316.7 505 357.8 213.5 379.1
140 60 337.4 537.6 380.9 229.2 403.7
145 62.8 359.1 571.7 405.1 245.6 429.6
150 65.6 381.7 607.6 430.3 262.8 456.8
155 68.3 405.4 645.2 456.6 281 484.8

Data points are reproduced based on available information. We(SCY Chiller) assumes no responsibility or liabililty for data errors.
