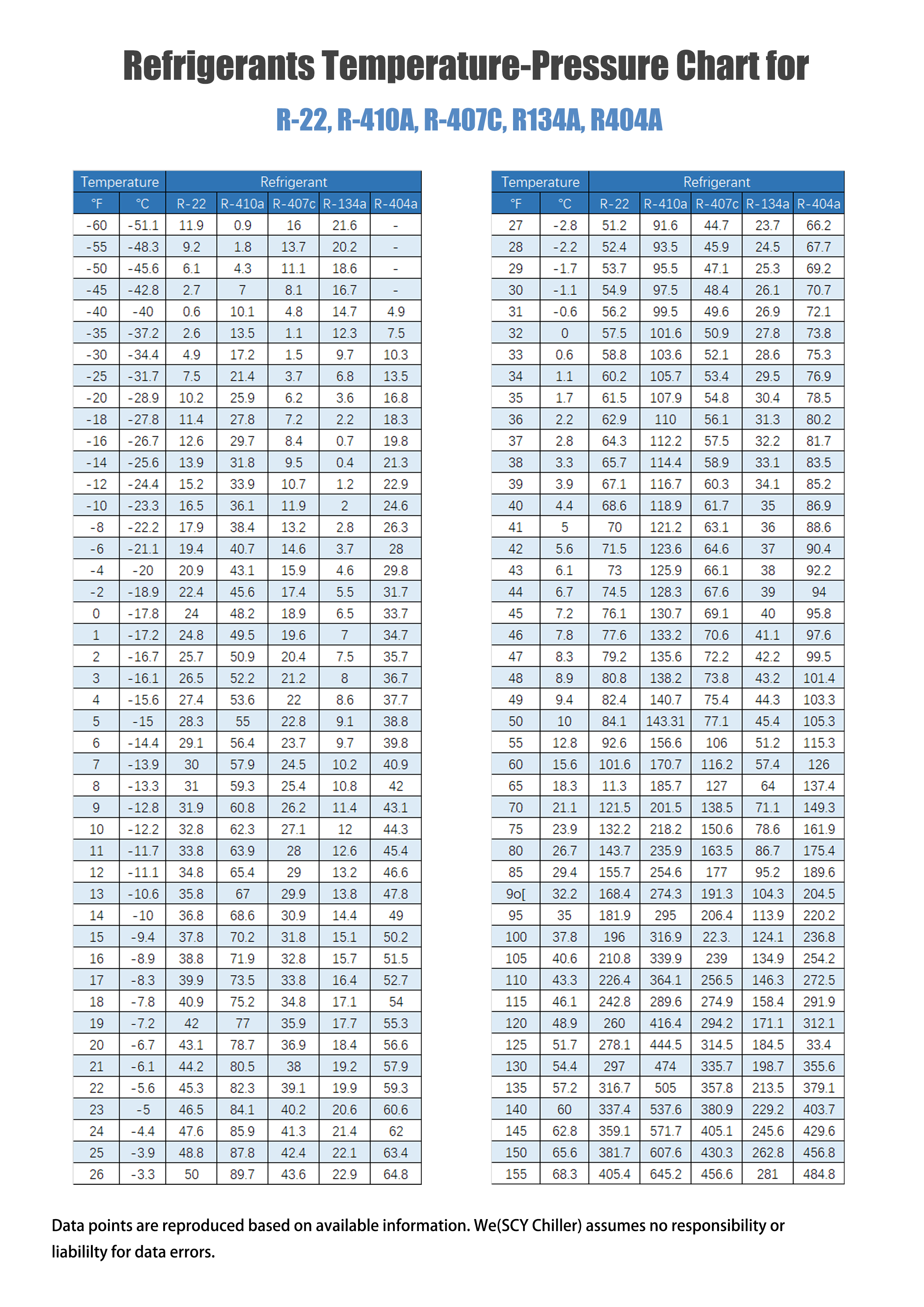

درجہ حرارت |
ٹھنڈا |
|||||
| . ایف | . C | R-22 | R-410a | R-407c | R-134a | R-404a |
| -60 | -51.1 | 11.9 | 0.9 | 16 | 21.6 | - |
| -55 | -48.3 | 9.2 | 1.8 | 13.7 | 20.2 | - |
| -50 | -45.6 | 6.1 | 4.3 | چین سے صنعتی واٹر چلر بنانے والا | 18.6 | - |
| -45 | -42.8 | 2.7 | 7 | 8.1 | 16.7 | - |
| -40 | -40 | 0.6 | 10.1 | 4.8 | 14.7 | 4.9 |
| -35 | -37.2 | 2.6 | 13.5 | 1.1 | 12.3 | 7.5 |
| -30 | -34.4 | 4.9 | چین سے صنعتی واٹر چلر بنانے والا | 1.5 | 9.7 | 10.3 |
| -25 | -31.7 | 7.5 | 21.4 | 3.7 | 6.8 | 13.5 |
| -20 | -28.9 | 10.2 | 25.9 | 6.2 | 3.6 | 16.8 |
| -18 | -27.8 | 11.4 | 27.8 | 7.2 | 2.2 | 18.3 |
| -16 | -26.7 | 12.6 | 29.7 | 8.4 | 0.7 | 19.8 |
| -14 | -25.6 | 13.9 | 31.8 | 9.5 | 0.4 | 21.3 |
| -12 | -24.4 | 15.2 | 33.9 | 10.7 | 1.2 | 22.9 |
| -10 | -23.3 | 16.5 | 36.1 | 11.9 | 2 | 24.6 |
| -8 | -22.2 | 17.9 | 38.4 | 13.2 | 2.8 | 26.3 |
| -6 | -21.1 | 19.4 | 40.7 | 14.6 | 3.7 | 28 |
| -4 | -20 | 20.9 | 43.1 | 15.9 | 4.6 | 29.8 |
| -2 | -18.9 | 22.4 | 45.6 | 17.4 | 5.5 | 31.7 |
| 0 | -17.8 | 24 | 48.2 | 18.9 | 6.5 | 33.7 |
| 1 | -17.2 | 24.8 | 49.5 | 19.6 | 7 | 34.7 |
| 2 | -16.7 | 25.7 | 50.9 | 20.4 | 7.5 | 35.7 |
| 3 | -16.1 | 26.5 | 52.2 | 21.2 | 8 | 36.7 |
| 4 | -15.6 | 27.4 | 53.6 | 22 | 8.6 | 37.7 |
| 5 | -15 | 28.3 | 55 | 22.8 | 9.1 | 38.8 |
| 6 | -14.4 | 29.1 | 56.4 | 23.7 | 9.7 | 39.8 |
| 7 | -13.9 | 30 | 57.9 | 24.5 | 10.2 | 40.9 |
| 8 | -13.3 | 31 | 59.3 | 25.4 | 10.8 | 42 |
| 9 | -12.8 | 31.9 | 60.8 | 26.2 | 11.4 | 43.1 |
| 10 | -12.2 | 32.8 | 62.3 | 27.1 | 12 | 44.3 |
| 11 | -11.7 | 33.8 | 63.9 | 28 | 12.6 | 45.4 |
| 12 | -11.1 | 34.8 | 65.4 | 29 | 13.2 | 46.6 |
| 13 | -10.6 | 35.8 | 67 | 29.9 | 13.8 | 47.8 |
| 14 | -10 | 36.8 | 68.6 | 30.9 | 14.4 | 49 |
| 15 | -9.4 | 37.8 | 70.2 | 31.8 | 15.1 | 50.2 |
| 16 | -8.9 | 38.8 | 71.9 | 32.8 | 15.7 | 51.5 |
| 17 | -8.3 | 39.9 | 73.5 | 33.8 | 16.4 | 52.7 |
| 18 | -7.8 | 40.9 | 75.2 | 34.8 | 17.1 | 54 |
| 19 | -7.2 | 42 | 77 | 35.9 | 17.7 | 55.3 |
| 20 | -6.7 | 43.1 | 78.7 | 36.9 | 18.4 | 56.6 |
| 21 | -6.1 | 44.2 | 80.5 | 38 | 19.2 | 57.9 |
| 22 | -5.6 | 45.3 | 82.3 | 39.1 | 19.9 | 59.3 |
| 23 | -5 | 46.5 | 84.1 | 40.2 | 20.6 | 60.6 |
| 24 | -4.4 | 47.6 | 85.9 | 41.3 | 21.4 | 62 |
| 25 | -3.9 | 48.8 | 87.8 | 42.4 | 22.1 | 63.4 |
| 26 | -3.3 | 50 | 89.7 | 43.6 | 22.9 | 64.8 |
| 27 | -2.8 | 51.2 | 91.6 | 44.7 | 23.7 | 66.2 |
| 28 | -2.2 | 52.4 | 93.5 | 45.9 | 24.5 | 67.7 |
| 29 | -1.7 | 53.7 | 95.5 | 47.1 | 25.3 | 69.2 |
| 30 | -1.1 | 54.9 | 97.5 | 48.4 | 26.1 | 70.7 |
| 31 | -0.6 | 56.2 | 99.5 | 49.6 | 26.9 | 72.1 |
| 32 | 0 | 57.5 | 101.6 | 50.9 | 27.8 | 73.8 |
| 33 | 0.6 | 58.8 | 103.6 | 52.1 | 28.6 | 75.3 |
| 34 | 1.1 | 60.2 | 105.7 | 53.4 | 29.5 | 76.9 |
| 35 | 1.7 | 61.5 | 107.9 | 54.8 | 30.4 | 78.5 |
| 36 | 2.2 | 62.9 | 110 | 56.1 | 31.3 | 80.2 |
| 37 | 2.8 | 64.3 | 112.2 | 57.5 | 32.2 | 81.7 |
| 38 | 3.3 | 65.7 | 114.4 | 58.9 | 33.1 | 83.5 |
| 39 | 3.9 | 67.1 | 116.7 | 60.3 | 34.1 | 85.2 |
| 40 | 4.4 | 68.6 | 118.9 | 61.7 | 35 | 86.9 |
| 41 | 5 | 70 | 121.2 | 63.1 | 36 | 88.6 |
| 42 | 5.6 | 71.5 | 123.6 | 64.6 | 37 | 90.4 |
| 43 | 6.1 | 73 | 125.9 | 66.1 | 38 | 92.2 |
| 44 | 6.7 | 74.5 | 128.3 | 67.6 | 39 | 94 |
| 45 | 7.2 | 76.1 | 130.7 | 69.1 | 40 | 95.8 |
| 46 | 7.8 | 77.6 | 133.2 | 70.6 | 41.1 | 97.6 |
| 47 | 8.3 | 79.2 | 135.6 | 72.2 | 42.2 | 99.5 |
| 48 | 8.9 | 80.8 | 138.2 | 73.8 | 43.2 | 101.4 |
| 49 | 9.4 | 82.4 | 140.7 | 75.4 | 44.3 | 103.3 |
| 50 | 10 | 84.1 | 143.31 | 77.1 | 45.4 | 105.3 |
| 55 | 12.8 | 92.6 | 156.6 | 106 | 51.2 | 115.3 |
| 60 | 15.6 | 101.6 | 170.7 | 116.2 | 57.4 | 126 |
| 65 | 18.3 | 11.3 | 185.7 | 127 | 64 | 137.4 |
| 70 | 21.1 | 121.5 | 201.5 | 138.5 | 71.1 | 149.3 |
| 75 | 23.9 | 132.2 | 218.2 | 150.6 | 78.6 | 161.9 |
| 80 | 26.7 | 143.7 | 235.9 | 163.5 | 86.7 | 175.4 |
| 85 | 29.4 | 155.7 | 254.6 | 177 | 95.2 | 189.6 |
| 9o[ | 32.2 | 168.4 | 274.3 | 191.3 | 104.3 | 204.5 |
| 95 | 35 | 181.9 | 295 | 206.4 | 113.9 | 220.2 |
| 100 | 37.8 | 196 | 316.9 | 22.3. | 124.1 | 236.8 |
| 105 | 40.6 | 210.8 | 339.9 | 239 | 134.9 | 254.2 |
| 110 | 43.3 | 226.4 | 364.1 | 256.5 | 146.3 | 272.5 |
| 115 | 46.1 | 242.8 | 289.6 | 274.9 | 158.4 | 291.9 |
| 120 | 48.9 | 260 | 416.4 | 294.2 | 171.1 | 312.1 |
| 125 | 51.7 | 278.1 | 444.5 | 314.5 | 184.5 | 33.4 |
| 130 | 54.4 | 297 | 474 | 335.7 | 198.7 | 355.6 |
| 135 | 57.2 | 316.7 | 505 | 357.8 | 213.5 | 379.1 |
| 140 | 60 | 337.4 | 537.6 | 380.9 | 229.2 | 403.7 |
| 145 | 62.8 | 359.1 | 571.7 | 405.1 | 245.6 | 429.6 |
| 150 | 65.6 | 381.7 | 607.6 | 430.3 | 262.8 | 456.8 |
| 155 | 68.3 | 405.4 | 645.2 | 456.6 | 281 | 484.8 |
ڈیٹا پوائنٹس کو دستیاب معلومات کی بنیاد پر دوبارہ تیار کیا جاتا ہے۔ ہم (SCY Chiller) ڈیٹا کی غلطیوں کے لیے کوئی ذمہ داری یا ذمہ داری قبول نہیں کرتے ہیں۔
یہ چارٹ ڈاؤن لوڈ کریں۔ یہاں.
Oi Leo.
Qual a pressão manométrica para o gás r404a em um liofilizador que trabalha com temperatura de -60ºC?
For the R404a refrigerant at a temperature of -60ºC, the corresponding pressure is typically below its usual operational range. To find the exact value, you should consult the pressure-temperature (PT) chart specific to R404a. We currently have no such data in hand. However, remember that operating at such low temperatures might necessitate specialized equipment.
