Understanding Water-Cooled Condensers and Their Operation

In refrigeration and air conditioning systems, condensers are heat exchangers where the refrigerant releases heat to the environment, transitioning from a gas to a liquid state. There are three main types: air-cooled, water-cooled, and evaporative, with water-cooled condensers being prevalent in industrial settings due to their efficiency and suitability for large-scale operations. Chillers, which remove heat from processes or spaces, rely on condensers to reject the heat absorbed by the refrigerant during the cooling cycle. Water-cooled condensers are particularly valued for their ability to handle high heat loads, making them essential for applications requiring consistent, reliable cooling, such as chemical plants, data centers, and food processing facilities.

What is a Water-Cooled Condenser?

A water-cooled condenser is a heat exchanger designed to remove heat from the refrigerant in a chiller system by transferring it to water. Unlike air-cooled condensers, which use ambient air for heat dissipation, water-cooled condensers leverage water’s higher heat capacity for more efficient heat removal. They are typically integrated into water-cooled chiller systems, where the condenser is connected to a cooling tower or other water-cooling apparatus to dissipate the heat to the atmosphere. This design is especially effective in environments where air cooling would be insufficient, such as in hot climates or indoor settings with limited ventilation.

The condenser is located between the compressor and the expansion valve in the refrigeration cycle. Hot, high-pressure refrigerant vapor, heated by the compression process, enters the condenser, and liquid refrigerant exits, ready for the expansion phase. The water-cooled design ensures that this heat transfer occurs efficiently, maintaining the chiller’s overall performance.

How Does a Water-Cooled Condenser Work?

The operation of a water-cooled condenser involves a continuous cycle of heat exchange, facilitated by the interaction between the refrigerant and water. Here’s a detailed breakdown of the process:

1. Refrigerant Entry: The compressor compresses the refrigerant, raising its temperature and pressure, resulting in hot, high-pressure vapor. This vapor enters the condenser, typically through the top or side, depending on the design.

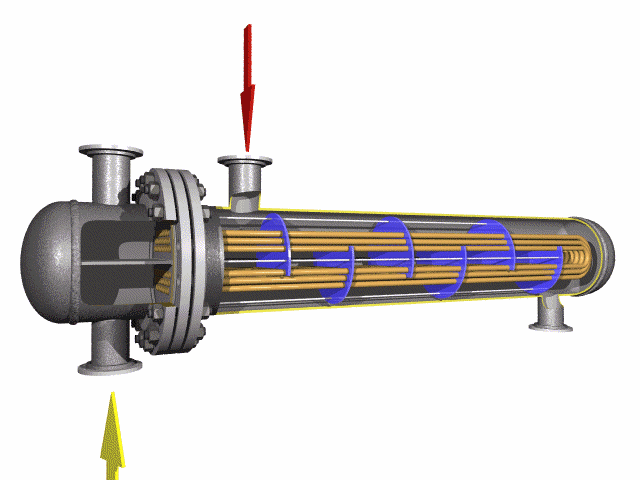

2. Heat Transfer in the Condenser: Inside the condenser, which is often a shell-and-tube heat exchanger, the refrigerant vapor flows over tubes containing cool water. The water, circulated by a pump, absorbs heat from the refrigerant through the tube walls. This heat transfer causes the refrigerant to condense, changing from a gas to a liquid state. The shell-and-tube design is common, where the refrigerant is in the shell and water flows through the tubes, providing a large surface area for heat exchange. Other designs, like brazed plate condensers, use stacked plates for compact, efficient heat transfer, but the principle remains the same.
3. Refrigerant Exit: Once condensed, the liquid refrigerant, now at a lower temperature and high pressure, exits the condenser and proceeds to the expansion valve, where it expands and cools further before entering the evaporator.
4. Water Circulation: The water, now warmed by the absorbed heat, is pumped to a cooling tower or another cooling system, such as a heat exchanger, where it releases the heat to the atmosphere, often through evaporation. In a cooling tower, water is sprayed over fill material, and fans enhance evaporation, cooling the water to near the wet bulb temperature.
5. Recirculation: The cooled water is then returned to the condenser to absorb more heat, completing the cycle. This closed-loop system ensures continuous operation, with the cooling tower maintaining the water at a temperature suitable for efficient heat exchange, typically 65°F–75°F, depending on ambient conditions.

This cycle is integral to the chiller’s operation, as it allows the system to reject the heat absorbed from the process or space being cooled, maintaining the desired temperature. The efficiency of this process depends on factors like water flow rate, condenser design, and the temperature difference between the refrigerant and water, with optimal performance achieved when the condenser water temperature is kept low, reducing the compressor’s workload.

Types of Water-Cooled Condensers

Water-cooled condensers come in several designs, each suited to specific applications:

• Shell-and-Tube: The most common type, featuring a cylindrical shell with tubes running through it. Refrigerant flows in the shell, and water passes through the tubes, offering easy cleaning and repair, making it cost-effective for large systems.
• Brazed Plate: Compact and efficient, using stacked plates for heat exchange, ideal for packaged chillers where space is limited.
• Coaxial: Uses concentric tubes, with refrigerant and water flowing in opposite directions, providing high heat transfer rates for smaller systems.

Each type operates on the same principle of heat transfer from refrigerant to water, but their construction affects maintenance needs and efficiency. Shell-and-tube condensers, for instance, are robust and easy to clean, while brazed plate units are more compact but harder to service.

Advantages of Water-Cooled Condensers

Water-cooled condensers offer several benefits, making them a preferred choice in many industrial settings:

• Higher Efficiency: Water has a higher heat capacity than air, allowing for more effective heat removal, especially in high-heat environments. This can reduce energy consumption by up to 20% compared to air-cooled systems, as noted in industry comparisons.
• Space Savings: They are often more compact than air-cooled condensers, which require large fan arrays, making them suitable for indoor installations or space-constrained facilities.
• Stable Operation: Less affected by ambient temperature fluctuations, water-cooled condensers provide consistent performance, even in hot climates, ensuring stable process temperatures.
• Scalability: They can handle large cooling loads, from 10 tons to 4,000 tons, making them ideal for large industrial chillers used in data centers or chemical plants.

However, they require additional infrastructure, like cooling towers, which can increase initial and maintenance costs, and they need water treatment to prevent scaling and corrosion, adding to operational complexity.

Maintenance Considerations

To ensure optimal performance, water-cooled condensers require regular maintenance:

• Cleaning Condenser Tubes: Scale, fouling, or biological growth can reduce heat transfer efficiency. Clean tubes every 6–12 months using chemical descaling or mechanical brushing, depending on the system.
• Monitoring Water Quality: Poor water quality can cause corrosion or scaling. Test water monthly for pH, hardness, and contaminants, and treat with inhibitors or filters as needed. Maintain cycles of concentration (CoC) at 3–6 to balance efficiency and scaling risk.
• Ensuring Cooling Tower Operation: The cooling tower must function efficiently to keep condenser water cool. Inspect fans, fill material, and basins quarterly, and clean to remove sludge or algae, ensuring effective heat rejection.
• Leak Checks: Regularly inspect for water or refrigerant leaks, as they can reduce efficiency and cause environmental harm. Use pressure tests or dye to detect issues early.

Neglecting maintenance can lead to efficiency drops of 10–15%, increasing energy costs and risking system failure, so proactive care is essential.

Practical Considerations and Applications

Water-cooled condensers are typically used in larger chiller systems where efficiency and space are priorities, such as in manufacturing plants, data centers, and HVAC systems for commercial buildings. Their effectiveness depends on environmental conditions, performing best in hot, dry climates where cooling towers can efficiently evaporate water. In humid regions, efficiency may decrease, requiring larger towers or additional cooling stages.

For example, in a chemical plant, a water-cooled chiller with a shell-and-tube condenser might cool process water to 40°F, rejecting heat to a cooling tower that maintains condenser water at 75°F, ensuring stable operation during high-heat production runs. In contrast, air-cooled systems might struggle in such conditions, highlighting the advantage of water-cooled designs.

Installation involves connecting the condenser to the chiller and cooling tower, ensuring proper water flow and pressure, typically 2.5–3 GPM per ton of cooling capacity. Operators should also consider water treatment systems to prevent scaling, especially in hard water areas, and ensure adequate space for the cooling tower, which can be a significant footprint.

Kesimpulan

A water-cooled condenser is a vital component of industrial chiller systems, efficiently removing heat from the refrigerant by transferring it to water, which is then cooled in a cooling tower and recirculated. Its operation involves a continuous cycle of heat exchange, offering high efficiency, space savings, and stable performance, particularly in high-heat environments. Regular maintenance, such as cleaning tubes and monitoring water quality, is crucial to prevent scaling and corrosion, ensuring long-term reliability. By understanding its workings and applications, operators can optimize chiller performance, reduce energy costs, and meet the demands of modern industrial cooling needs.
